Compound Monocular Microscopes

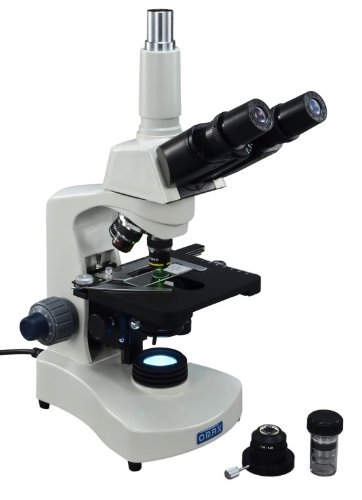

40x-2000x Advanced Darkfield Trinocular Compound Microscope

40x-2000x Advanced Darkfield Trinocular Compound Microscope Review

Price : $969.98

Rate This Product
		Brand:	OMAX
		List Price:	$969.98
		Our Price:	$669.98
		Total Price: In Stock. Usually ships in 1-2 business days

40x-2000x Advanced Darkfield Trinocular Compound Microscope Feature

• Model: M8311-A191BOIL
• Total magnification: 40x-80x-100x-200x-400x-800x-1000x-2000x
• Eyepieces: wide field WF10X/18 and WF20X
• Objective: achromatic DIN 4x, 10x, 40x(Spring),100x(Spring,Oil)
• Head: 30degrees;Inclined 360degrees;rotatable trinocular Siedentopf
• Interpupillary: hinge adjustment 48mm - 75mm
• Diopter: adjustable on left eyepiece tube
• Nosepiece: revolving, quadruple, reversed
• Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm
• Focus: Coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop
• Illumination: Transmitted 3W LED light, intensity adjustable
• Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment
• Extra darkfield condener: NA1.36-1.25
• Extra Oil darkfield objective: Plan 100X/1.25-0.5 160/0.17, w/ built-in iris diaphragm, oil, spring loaded
• Power supply: 110V/220V (switch at the bottom)
• Dimension: 12inch x 8inch x 15inch (31cm x 20cm x 39cm)
• Net weight: 11 lb 4.1 oz(5.1 kg)

40x-2000x Advanced Darkfield Trinocular Compound Microscope Overview

Packing List: Trinocular Siedentopf microscope head;Photo tube for digital cameras;Microscope stand and base;Objective 4x, 10x, 40x(S), and 100x(S, Oil);Eyepieces: a pair of WF10X and a pair of WF20X;2 color filters: Green and Blue;1 bottle of immersion oil;Power cord (US and Canada standard);Focus tension adjustment wrench;Dust cover;Oil darkfield condenser and 100X oil objective lens w/ built-in iris diaphragm
