40x-2000x Trinocular Compound Microscope+Oil Darkfield Condenser

40x-2000x Trinocular Compound Microscope+Oil Darkfield Condenser Review

Price : $819.98

Rate This Product
		Brand:	OMAX
		List Price:	$819.98
		Our Price:	$499.98
		Total Price: In Stock. Usually ships in 1-2 business days

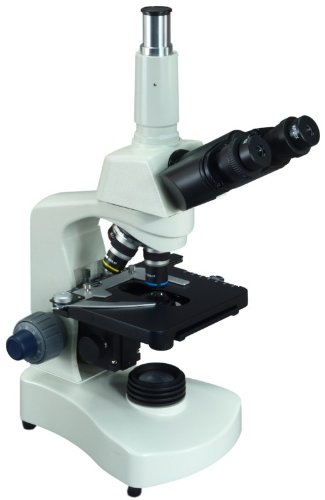

40x-2000x Trinocular Compound Microscope+Oil Darkfield Condenser Feature

• Model: M8311-A191OIL1
• Total magnification: 40x-80x-100x-200x-400x-800x-1000x-2000x
• Eyepieces: wide field WF10X/18 and WF20X
• Objective: achromatic DIN 4x, 10x, 40x(Spring),100x(Spring,Oil)
• Head: 30degrees;Inclined 360degrees;rotatable trinocular Siedentopf
• Interpupillary: hinge adjustment 48mm - 75mm
• Diopter: adjustable on left eyepiece tube
• Nosepiece: revolving, quadruple, reversed
• Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm
• Focus: Coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop
• Illumination: Transmitted 3W LED light, intensity adjustable
• Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment
• Extra NA: 1.36-1.25 oil darkfield condenser, center adjustable
• Extra 100X objective lens: 100X/1.25, DIN 160/0.17 (spring, oil), with built-in iris diaphragm
• Power supply: 110V/220V (switch at the bottom)
• Dimension: 12inch x 8inch x 15inch (31cm x 20cm x 39cm)
• Net weight: 11 lb 4.3 oz(5.11 kg)

40x-2000x Trinocular Compound Microscope+Oil Darkfield Condenser Overview

Packing List: Trinocular Siedentopf microscope head;Photo tube for digital cameras;Microscope stand and base;Objective 4x, 10x, 40x(S), and 100x(S, Oil);Eyepieces: a pair of WF10X and a pair of WF20X;2 color filters: Green and Blue;1 bottle of immersion oil;Power cord (US and Canada standard);Focus tension adjustment wrench;Dust cover;Darkffield kit: oil darkfield condenser and 100X oil objective lens
